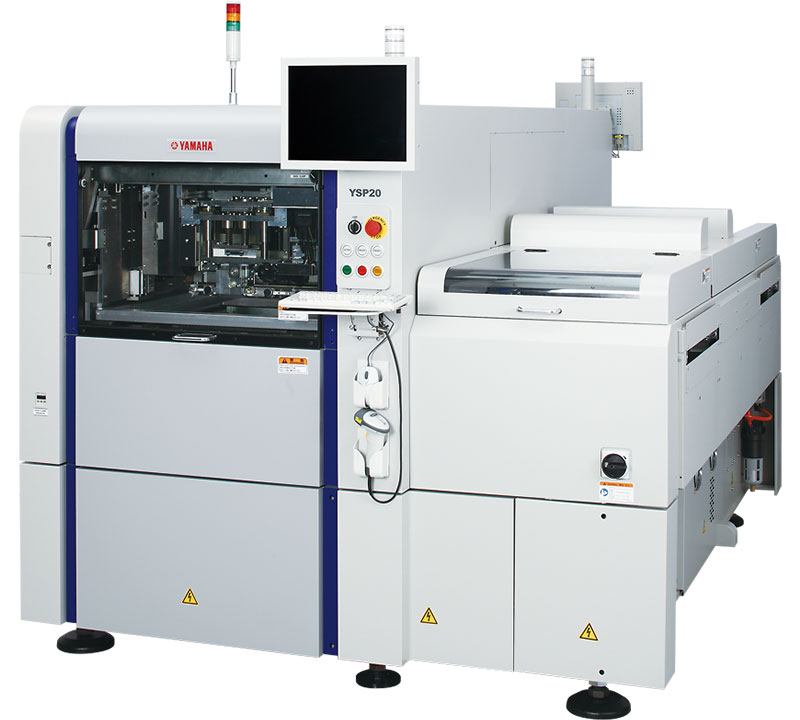

D×D Printer YSP20
BUILT-IN HIGH–SPEED & MULTI-FUNCTIONS SURPASS ALL PREVIOUS LIMITS!
- Super high-speed printing 5sec/cycle
- Positioning repeatability 3σ:+/-0.005mm
- Handles large PCBs L510 x W460mm
- Large stencils front & rear MAX.750x750mm
Ideal for High-Speed Multi-Function Printing

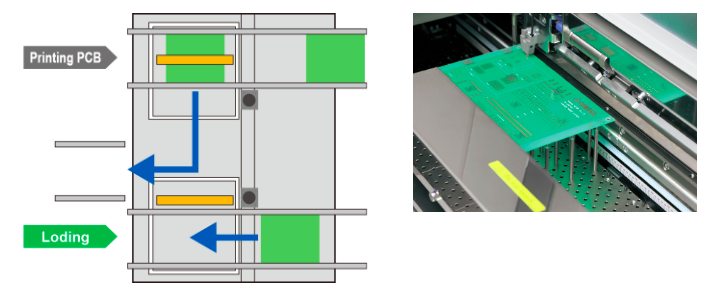

With dual stage & dual stencil
Printing has a line tact time of approximately 5 seconds. More than doubles the YSP productivity.

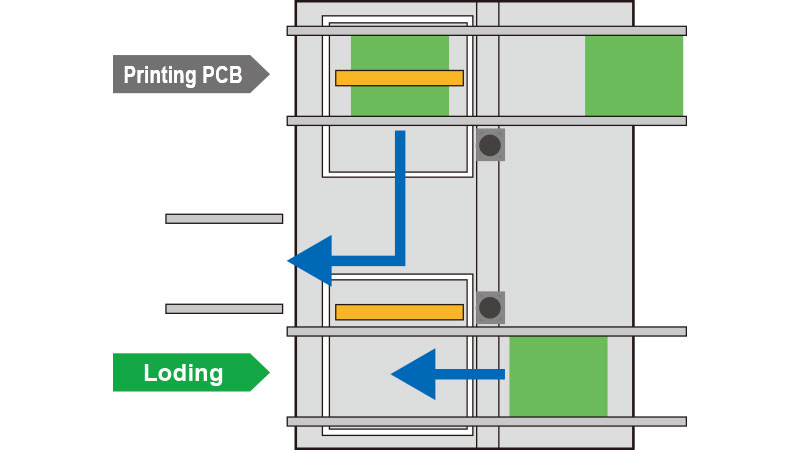

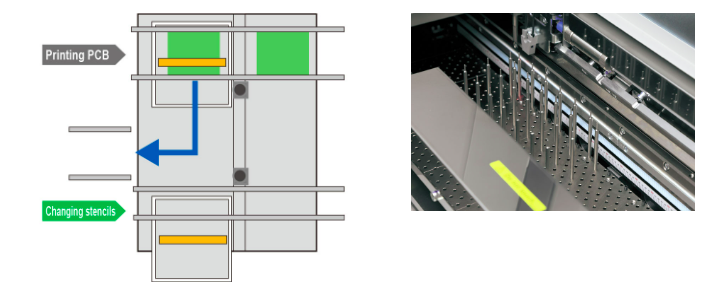

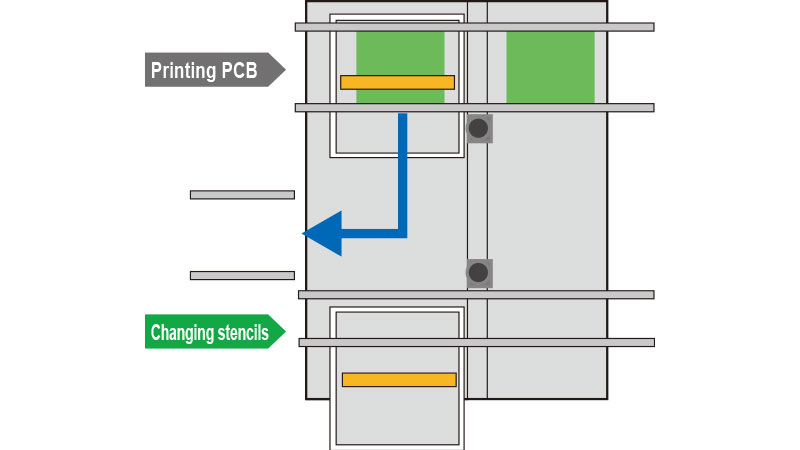

Non-stop setups & changeovers
One side sets the stencil backup while other side prints PCBs.

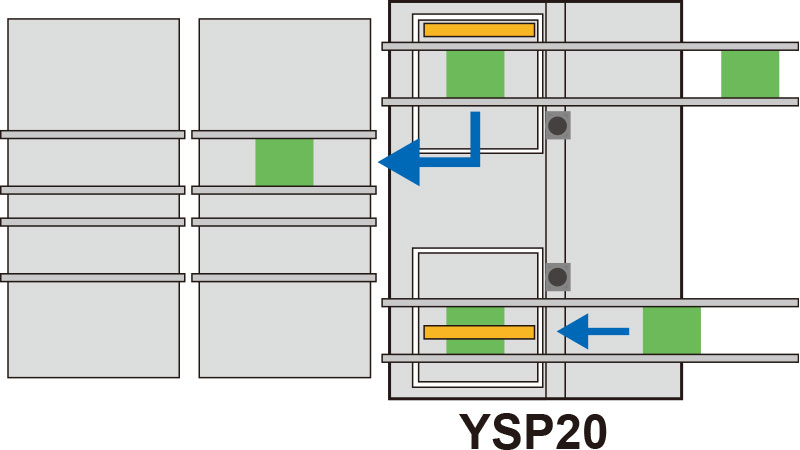

Fully compatible with YAMAHA dual lane system
Internal traverse function handles all dual-lane and single-lane types as a standard feature.
Delivers High-Quality & High-Accuracy Printing

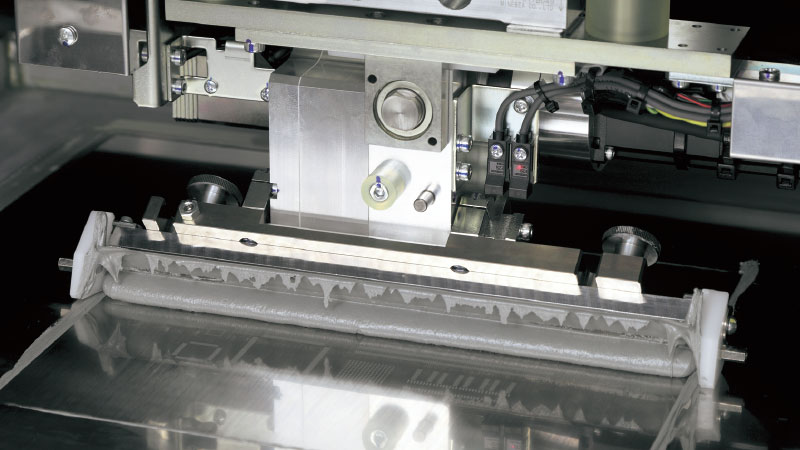

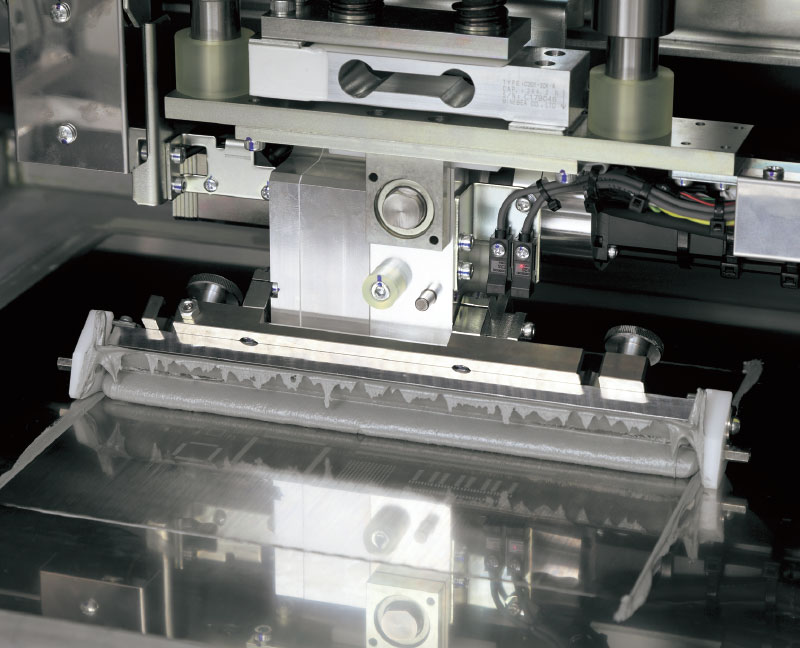

YAMAHA’s original 3S head[3S:Swing Single Squeegee]
Program change squeegee attack angle and speed to an ideal setting to provide optimal printing conditions that match the solder being used.

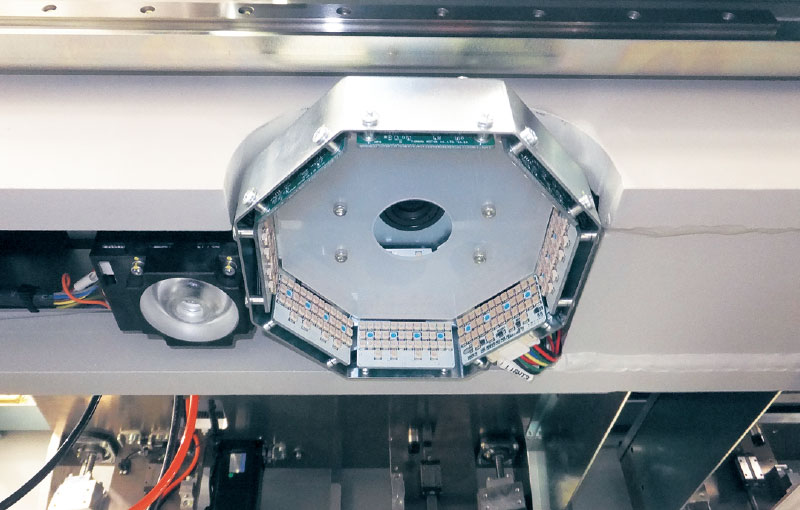

Printing inspection function(option)
Dedicated camera does full main line inspection. Feedback results are used in automated overlay printing and stencil cleaning.
PSC system (option) for stable printing[PSC:Print Stability Control]
This function stabilizes the cream solder rolling radius that affects print quality. The PSC function shortens the setup time and cuts solder loss. PSC is also compatible with non-stop production operation.

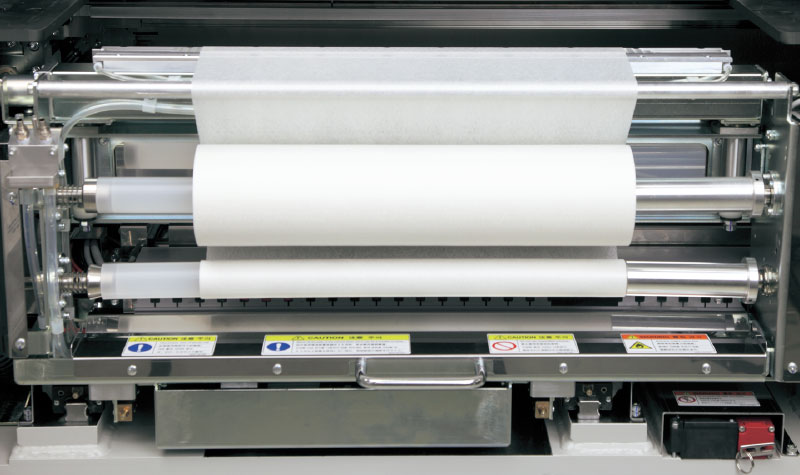

Auto cleaning system
High efficiency cleaning system is a standard feature. New system design makes for quieter operation.

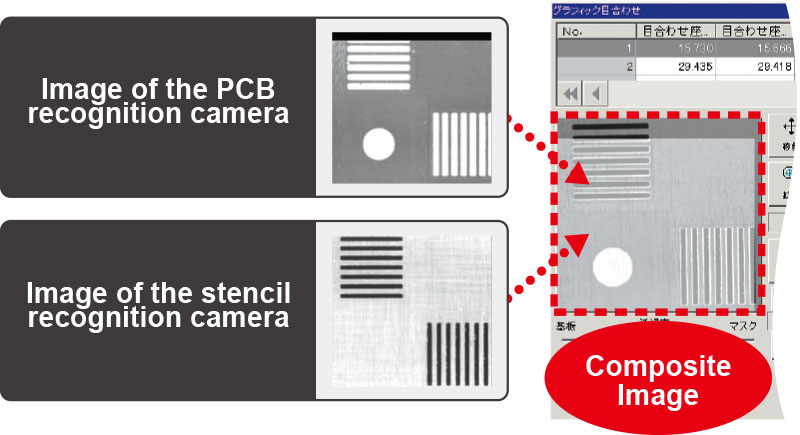

Graphic layer base alignment function
Composite display made from 2 camera images allows easy and precise alignment of PCB and stencil positions.
Handles Large PCB & Stencils

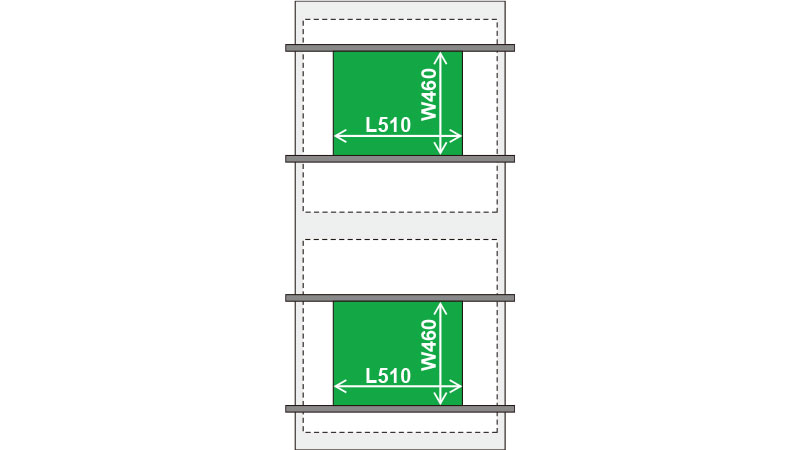

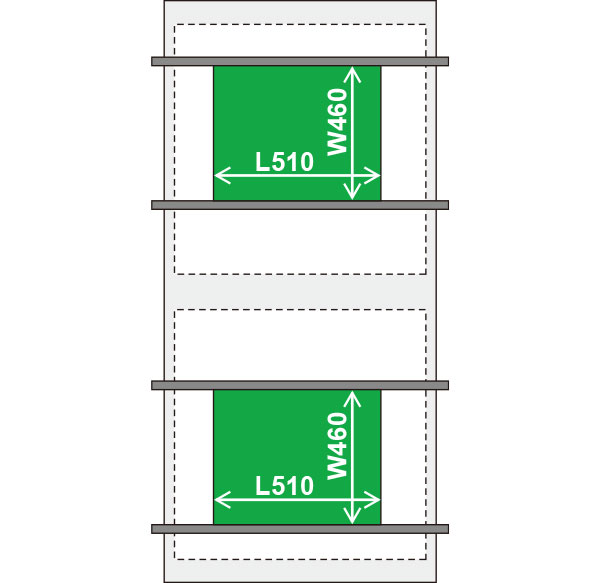

Handles Large PCBs
This model is designed to handle larger PCBs up to L510 × W460mm, expanding its capacity to accommodate collective substrates, LCD PCBs and industrial-use PCBs.
Using the YSP20 in combination with distribution conveyor allows processing PCB width up to 460mm at both front and rear stages.

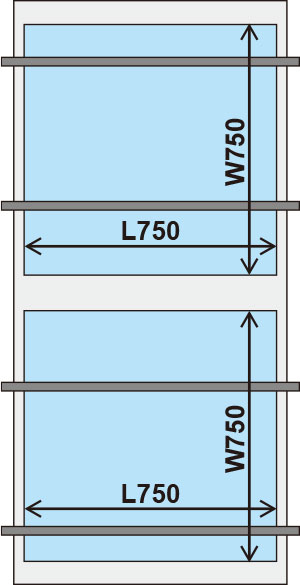

Handles large stencil sizes
Both front and rear stages handle large stencils to a maximum size of L750 × W750mm. 4 types of stencil sizes can easily change by a simple operation.
Superb Operability & Full Range of Options

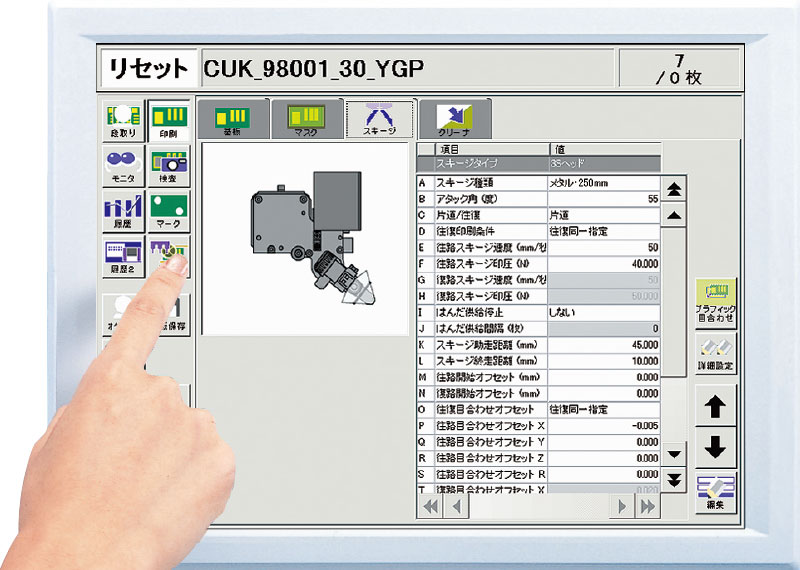

Touch panel
Smooth and simple operation via easy-to-see and easy-to-use interface Displays text in 4 languages: Japanese, English, Chinese, Korean.
Options
- Print inspection camera
- Print stability control (PSC)
- Left to right conveyor
- PCB vacuum suction system
- Temperature control unit
- Transformer for Temperature control unit
- Solder remaining quantity detection
- UPS system
- Double squeegee head
- IT option
With dual stage & dual stencil
Non-stop setups & changeovers
YAMAHA’s original 3S head[3S:Swing Single Squeegee]
Handles large PCBs

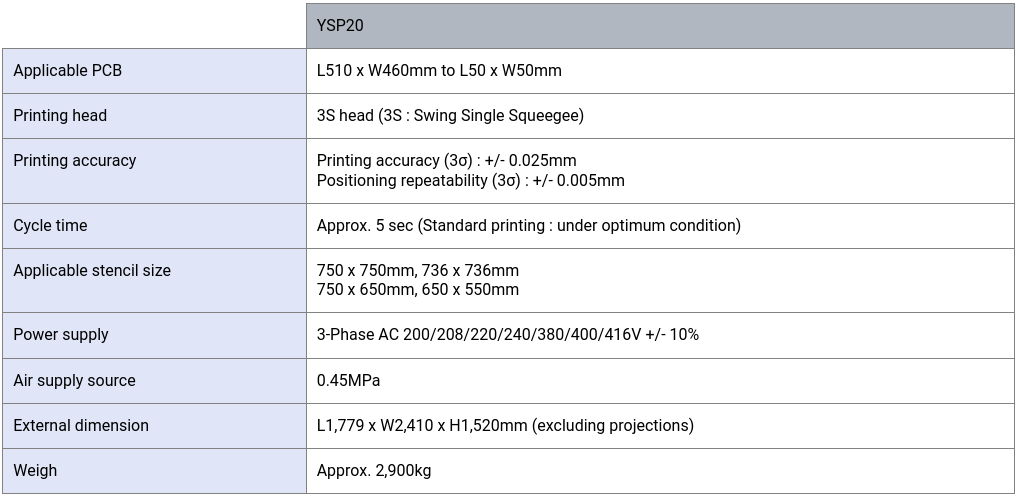

Specifications
Specifications and appearance are subject to change without prior notice.

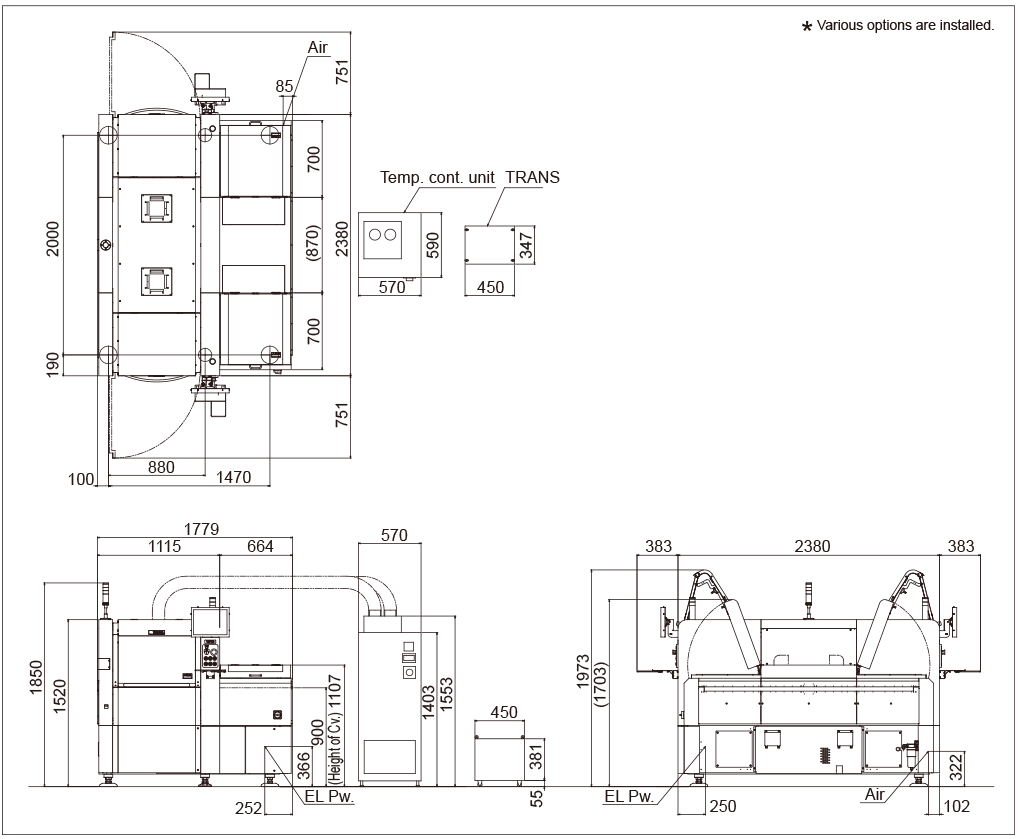

External Dimensions
